產品詳情

BSM100N-1150AA 7BBSM100N-1150AA

產品詳情
品牌 ABB

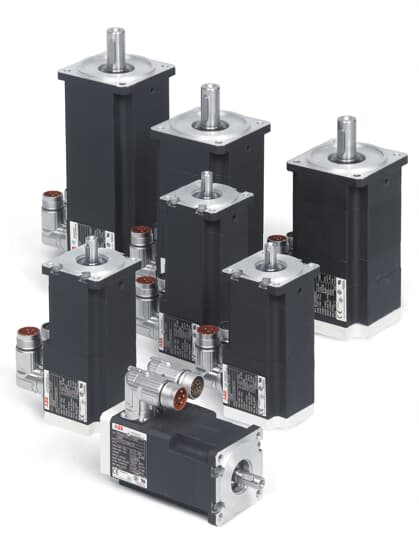

BSM N系列伺服電機－Resolver 旋轉變壓器
Code No.               Type                         v/1000rpm連續電流
(A)		3000rpm時
額定功率(kW)		連續扭矩
(NM)		Description
產品代號產品型號說明
3ABD00035499BSM100N-1150AA1509.404.4014.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035500BSM100N-1250AA2505.904.4014.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035501BSM100N-2150AA15015.507.2323.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035502BSM100N-2250AA2509.907.2323.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035503BSM100N-3150AA15021.0010.6834.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035504BSM100N-3250AA25014.7010.6834.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035505BSM100N-4150AA15026.9012.5740.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快
3ABD00035506BSM100N-4250AA25016.8012.5740.00BSM N系列伺服電機，較低的轉動慣量，速度高，加速快

BSM100N-1150AA

General Information

  • Global Commercial Alias:
    BSM100N-1150AA
  • Product ID:
    7BBSM100N-1150AA
  • ABB Type Designation:
    BSM100N-1150AA (NEO) T STAT, RESOLV
  • Catalog Description:
    BSM100N-1150AA (NEO) T'STAT, RESOLVE

Additional Information

  • ABB Type Designation:
    BSM100N-1150AA (NEO) T STAT, RESOLV
  • Base Speed:
    2000 r/min
  • Certification Agency:
    CE
    CSA
    TUV
    UR
  • Country of Origin:
    United States (US)
  • Customs Tariff Number:
    85013200
  • Enclosure Type:
    TENV
  • Frame Size:
    Undefined
  • Global Commercial Alias:
    BSM100N-1150AA
  • Gross Weight:
    28.148 kg
  • Invoice Description:
    BSM100N-1150AA (NEO) T'STAT, RESOLVE
  • Made To Order:
    No
  • Maximum Peak Current:
    34.1 A
  • Maximum Speed:
    4,000 r/min
  • Minimum Order Quantity:
    1 piece
  • Number of Poles:
    8
  • Order Multiple:
    1 piece
  • Product Name:
    BSM Servo Motors
  • Product Net Depth / Length:
    58.42 cm
  • Product Net Height:
    33.65 cm
  • Product Net Weight:
    28.148 kg
  • Product Net Width:
    31.75 cm
  • Product Type:
    BSM_N-Series
  • Quote Only:
    No
  • Rated Current (In):
    9.47 A
  • Rated Torque:
    14.00 N·m
  • RoHS Information:
    RoHS Compliant
  • Selling Unit of Measure:
    piece
  • Stocked At (Warehouses):
    China
    Alabama, United States
    Alaska, United States
  • UNSPSC:
    26101205
  • Voltage Rating:
    300 V
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

BSM100N-1150AA

概要信息

  • 全球商業別名:
    BSM100N-1150AA
  • 產品ID:
    7BBSM100N-1150AA
  • ABB型號名稱:
    BSM100N-1150AA (NEO) T STAT, RESOLV
  • 目錄說明:
    BSM100N-1150AA (NEO) T'STAT, RESOLVE

附加信息

  • ABB型號名稱:
    BSM100N-1150AA (NEO) T STAT, RESOLV
  • 基速:
    2000 r/min
  • 認證機構:
    CE
    CSA
    TUV
    UR
  • 原產地:
    United States (US)
  • 海關關稅號:
    85013200
  • 外殼類型:
    TENV
  • 外形尺寸:
    Undefined
  • 全球商業別名:
    BSM100N-1150AA
  • 毛重:
    28.148 kg
  • 發票說明:
    BSM100N-1150AA (NEO) T'STAT, RESOLVE
  • 按訂單生產:
    No
  • 最大峰值電流:
    34.1 A
  • 最高速度:
    4,000 r/min
  • 最小起訂量:
    1 piece
  • 極數:
    8
  • 訂單倍數:
    1 piece
  • 產品:
    BSM Servo Motors
  • 產品凈深:
    58.42 cm
  • 產品凈高:
    33.65 cm
  • 產品凈重:
    28.148 kg
  • 產品凈寬:
    31.75 cm
  • 產品應用類型:
    BSM_N-Series
  • 僅報價:
    No
  • 額定電流 (In):
    9.47 A
  • 額定力矩:
    14.00 N·m
  • RoHS信息:
    RoHS Compliant
  • 銷售度量單位:
    piece
  • 倉庫庫存:
    China
    Alabama, United States
    Alaska, United States
  • UNSPSC:
    26101205
  • 額定電壓:
    300 V
  • WEEE 類別:
    4. Large Equipment (Any External Dimension More Than 50 cm)

?
