7BBSM50N-375AA BSM50N-375AA

產品詳情

類別

變頻器

品牌

ABB

BSM50N-375AA

ABB Type Designation:
BSM50N-375AA (NEO) T'STAT, RESOLVER
Base Speed:
4000 r/min
Brand / Label:
Baldor-Reliance
Certification Agency:
CE
CSA
TUV
UR
WEEE
Country of Origin:
United States (US)
Customs Tariff Number:
85015100
Enclosure Type:
TENV
Frame Material:
Explosed Laminations
Frame Size:
Undefined
Global Commercial Alias:
BSM50N-375AA
Gross Volume:
835.948 in3
Gross Weight:
1.814 kg
Invoice Description:
BSM50N-375AA (NEO) T'STAT, RESOLVER
Made To Order:
No
Maximum Peak Current:
8.0 A
Maximum Speed:
1,000 r/min
Medium Description:
TENV Enclosure, (BSM50N-375AA)
Minimum Order Quantity:
1 piece
Motor Base Type:
Bracket Mounted
Number of Poles:
4
Order Multiple:
1 piece

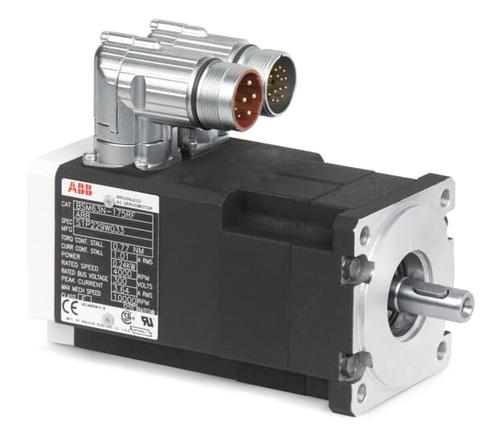

Product Name:
BSM Servo Motors
Product Net Depth / Length:
16.375 in
Product Net Height:
7.563 in
Product Net Weight:
1.814 kg
Product Net Width:
6.75 in
Product Type:
BSM_N-Series
Quote Only:
No
Rated Current (In):
2.38 A
Rated Torque:
1.36 N·m
RoHS Information:
RoHS Compliant
Selling Unit of Measure:
piece
Stocked At (Warehouses):
Menden, Germany
China
Alabama, United States
Alaska, United States
UNSPSC:
26101205
Voltage Rating:
300 V
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)

ABB型號名稱:
BSM50N-375AA (NEO) T'STAT, RESOLVER
基速:
4000 r/min
品牌/標簽:
Baldor-Reliance
認證機構:
CE
CSA
TUV
UR
WEEE
原產地:
United States (US)
海關關稅號:
85015100
外殼類型:
TENV
框架材料:
Explosed Laminations
外形尺寸:
Undefined
全球商業別名:
BSM50N-375AA
總?cè)莘e:
835.948 in3
毛重:
1.814 kg
發票說明:
BSM50N-375AA (NEO) T'STAT, RESOLVER
按訂單生產:
No
最大峰值電流:
8.0 A
最高速度:
1,000 r/min
媒體說明:
TENV Enclosure, (BSM50N-375AA)
最小起訂量:
1 piece
電機基座類型:
Bracket Mounted
極數:
4
訂單倍數:
1 piece
產品:
BSM Servo Motors
產品凈深:
16.375 in
產品凈高:
7.563 in
產品凈重:
1.814 kg
產品凈寬:
6.75 in
產品應用類型:
BSM_N-Series
僅報價:
No
額定電流 (In):
2.38 A
額定力矩:
1.36 N·m
RoHS信息:
RoHS Compliant
銷售度量單位:
piece
倉庫庫存:
Menden, Germany
China
Alabama, United States
Alaska, United States
UNSPSC:
26101205
額定電壓:
300 V
WEEE 類別:
4. Large Equipment (Any External Dimension More Than 50 cm)
