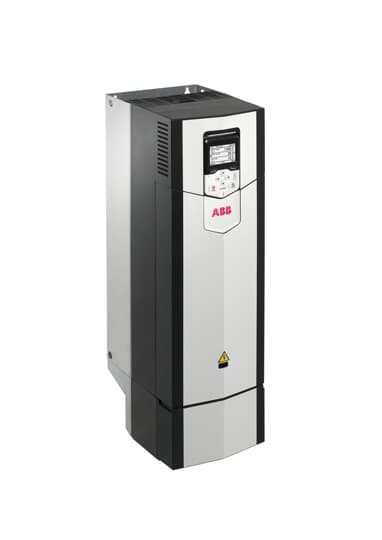

ACS880-01-087A-3 3AUA0000108023 ABB ACS880-01系列直接轉矩控制型變頻器

產品詳情
類別 變頻器 品牌 ABB

ACS880-01-087A-3

General Information

  • Global Commercial Alias:
    ACS880-01-087A-3
  • Product ID:
    3AUA0000108023
  • ABB Type Designation:
    ACS880-01-087A-3
  • EAN:
    6438177558392
  • Catalog Description:
    ACS880-01-087A-3 PN: 45 kW, IN: 87 A
  • Long Description:
    The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.

    The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.

Ordering

  • Country of Origin:
    Finland (FI)
  • Customs Tariff Number:
    85044086
  • Invoice Description:
    ACS880-01-087A-3 PN: 45 kW, IN: 87 A
  • Made To Order:
    Yes
  • Minimum Order Quantity:
    1 piece
  • Order Multiple:
    1 piece
  • Quote Only:
    No
  • Selling Unit of Measure:
    piece

Container Information

  • Gross Volume:
    40.715 dm3

Dimensions

  • Product Net Weight:
    22.8 kg
    50.265 lb
  • Product Net Depth / Length:
    274 mm
    10.787 in
  • Product Net Height:
    732 mm
  • Product Net Width:
    203 mm
    7.992 in
  • Package Level 1 Depth / Length:
    896 mm
  • Package Level 1 Height:
    329 mm
  • Package Level 1 Width:
    293 mm
  • Package Level 1 Units:
    1 carton

Technical

  • Number of Phases:
    3
  • Degree of Protection:
    IP21
  • Enclosure Type NEMA:
    Type1
  • Altitude:
    4000 m
  • Sound dB (A):
    64 dB(A)
  • Frequency (f):
    47.5 ... 63 Hz
  • Frame Size:
    R5
  • Input Voltage (Uin):
    380 ... 415 V
  • Mounting Type:
    Wall-mounted
  • Communication Protocol:
    CAN
    DeviceNet
    EtherNet/IP
    MODBUS
    Other Bus Systems
    PROFIsafe
    PROFIBUS
    PROFINET IO
  • Number of Hardware Interfaces:
    Industrial Ethernet 0
    Other 4
    Parallel 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 1
    Serial TTY 0
    USB 1
  • Includes:
    Control unit
    PC connection
  • Analog Inputs:
    2
  • Analog Outputs:
    2
  • Number of Digital In/Outputs:
    6 / 2
  • Output Current, Heavy-Duty Use (IHD):
    72 A
  • Output Current, Light-Overload Use (ILD):
    83 A
  • Output Current, Normal Use (In):
    87 A
  • Output Power, Heavy-Duty Use (PHD):
    37 kW
  • Output Power, Light-Overload Use (PLD):
    45 kW
  • Output Power, Normal Use (Pn):
    45 kW
  • Apparent Power Output:
    60 kV·A
  • Efficiency Level:
    IE2
  • Standby Loss:
    30 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    0 / 25 %271 W0.4 %92.4 %
    0 / 50 %390 W0.6 %94.2 %
    0 / 100 %700 W1.2 %94.7 %
    50 / 25 %296 W0.5 %95.8 %
    50 / 50 %444 W0.7 %96.7 %
    50 / 100 %840 W1.4 %96.9 %
    90 / 50 %534 W0.9 %97.8 %
    90 / 100 %1129 W1.9 %97.6 %
  • Temperature Rating:
    Maximum 40 °C

Additional Information

  • Product Main Type:
    ACS880-01
  • Product Name:
    Frequency converter

Classifications

  • Product Series:
    ACS880
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

Environmental

  • SCIP:
    86747225-0c21-49aa-b6ea-31ca7c4cb393 Finland (FI)
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

ACS880-01-087A-3

概要信息

  • 全球商業別名:
    ACS880-01-087A-3
  • 產品ID:
    3AUA0000108023
  • ABB型號名稱:
    ACS880-01-087A-3
  • 歐洲商品編號(EAN):
    6438177558392
  • 目錄說明:
    ACS880-01-087A-3 PN: 45 kW, IN: 87 A
  • 詳細描述:
    The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.

    The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.

訂貨信息

  • 原產地:
    Finland (FI)
  • 海關關稅號:
    85044086
  • 發票說明:
    ACS880-01-087A-3 PN: 45 kW, IN: 87 A
  • 按訂單生產:
    Yes
  • 最小起訂量:
    1 piece
  • 訂單倍數:
    1 piece
  • 僅報價:
    No
  • 銷售度量單位:
    piece

包裝信息

  • 總?cè)莘e:
    40.715 dm3

尺寸

  • 產品凈重:
    22.8 kg
    50.265 lb
  • 產品凈深:
    274 mm
    10.787 in
  • 產品凈高:
    732 mm
  • 產品凈寬:
    203 mm
    7.992 in
  • 1級包裝長度:
    896 mm
  • 1級包裝高度:
    329 mm
  • 1級包裝寬度:
    293 mm
  • 1級包裝單元:
    1 carton

技術參數

  • 相數:
    3
  • 防護等級:
    IP21
  • 外殼防護等級:
    Type1
  • 海拔:
    4000 m
  • 噪聲級dB（A):
    64 dB(A)
  • 頻率 (f):
    47.5 ... 63 Hz
  • 外形尺寸:
    R5
  • 輸入電壓 (Uin):
    380 ... 415 V
  • 安裝類型:
    Wall-mounted
  • 通訊協議:
    CAN
    DeviceNet
    EtherNet/IP
    MODBUS
    Other Bus Systems
    PROFIsafe
    PROFIBUS
    PROFINET IO
  • 硬件接口數量:
    Industrial Ethernet 0
    Other 4
    Parallel 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 1
    Serial TTY 0
    USB 1
  • 包含:
    Control unit
    PC connection
  • 模擬輸入:
    2
  • 模擬輸出:
    2
  • 數字輸入/輸出數量:
    6 / 2
  • 輸出電流，重載應用 (IHD):
    72 A
  • 輸出電流，輕過載應用 (ILD):
    83 A
  • 輸出電流，正常應用 (In):
    87 A
  • 輸出電流，重載應用 (PHD):
    37 kW
  • 輸出電流，輕過載應用 (PLD):
    45 kW
  • 輸出電流，正常應用 (Pn):
    45 kW
  • 視在功率輸出:
    60 kV·A
  • 效率水平:
    IE2
  • 待機損耗:
    30 W
  • Complete Drive Module Efficiency (61800-9-2):
    Operating Point Frequency / CurrentAbsolute LossRelative LossEfficiency
    0 / 25 %271 W0.4 %92.4 %
    0 / 50 %390 W0.6 %94.2 %
    0 / 100 %700 W1.2 %94.7 %
    50 / 25 %296 W0.5 %95.8 %
    50 / 50 %444 W0.7 %96.7 %
    50 / 100 %840 W1.4 %96.9 %
    90 / 50 %534 W0.9 %97.8 %
    90 / 100 %1129 W1.9 %97.6 %
  • 額定溫度:
    Maximum 40 °C

其他信息

  • 產品系列:
    ACS880-01
  • 產品:
    Frequency converter

分類

  • 產品系列:
    ACS880
  • ETIM 7:
    EC001857 - Frequency converter =< 1 kV
  • UNSPSC:
    39122001

環境條件

  • SCIP:
    86747225-0c21-49aa-b6ea-31ca7c4cb393 Finland (FI)
  • WEEE 類別:
    4. Large Equipment (Any External Dimension More Than 50 cm)

?
