Let’s connect.ABB network communication adaptersThese flexible plug-in adaptersprovide fast and simple universalconnectivity to all major controllers.Universal connectivity means ABBLow Voltage Drives connect tovirtually all controller brands andcommunication networks, allowingusers to choose the best network tomeet their needs.Network connectivity of products providessimplified interface for control and management ofdrives; improving quality, productivity, flexibilityand scalability.ABB’s complete product portfolio of drives andprotocol network adapters make ABB drives idealfor many different industrial applications inindustries such as; water & waste water, pumps &fans, alternative energy, pulp & paper, metals,mining, cement, power, chemical, and oil and gas.Advantages of Network Connectivity
? Decreases mechanical and electrical installation time
? Reduces down time
? More data is available at a lower cost
? Reduces time and cost of machine expansion orrelocation
? Remote data access
? Diagnostics provide predictive failure warnings
? Open protocols provide multi- vendor interoperability
? Ease of machine expansion or relocation
? Reusability of system softwareAdvantages of ABB Network Connectivity
? Connectivity to virtually any automation architecture
? Fast & simple connectivity
? Products designed and tested to conform to protocolspecifications

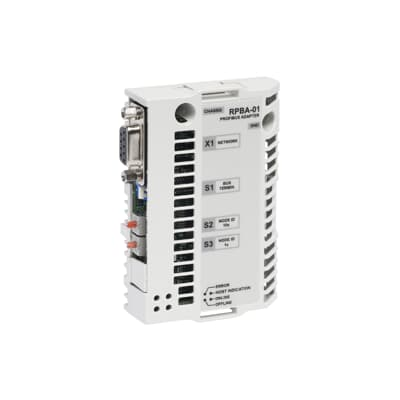

? Best in class support resourcesProtocol NetworkAdaptersMaximumDevicesBaud RateCANopen? RCAN-01 127 10 kbit/s -1 Mbit/sControlNet? RCNA-01 99 5 Mbit/sDeviceNet? RDNA-01 64 125 kbit/s -500 kbit/sEtherCAT? RECA-01 65535 100 Mbit/sEtherNet/IP? RETA-01 NearlyUnlimited10 100 Mbit/sModbus? RTU RMBA-01 247 600 bit/s -19200 kbit/sModbus? TCP RETA-01 NearlyUnlimited10 100Mbit/sPROFIBUS? DP RPBA-01 32/segment126 total9.6 kbit/s -12 Mbit/sPROFINET? IO RETA-02 NearlyUnlimited100 Mbit/sEnd User Benefits
? Decrease in mechanical and electrical installation cost
? Decrease in down time
? Increase in productivity
? Diminished start-up cost
? Lower maintenance and diagnostic costLVD-PHPB07U-EN REVD Effective: 01/01/2018—We reserve the right to make technicalchanges or modify the contents of thisdocument without prior notice. Withregard to purchase orders, the agreedparticulars shall prevail. ABB AG does notaccept any responsibility whatsoever forpotential errors or possible lack ofinformation in this document.We reserve all rights in this document andin the subject matter and illustrationscontained therein. Any reproduction,disclosure to third parties or utilization ofits contents – in whole or in parts – isforbidden without prior written consent ofABB AG. Copyright? 2017 ABB All rightsreserved—ABB IncDrives and Controls16250 W. Glendale DriveNew Berlin, WI 53151abbnow.com/abbconnectivityCANopen: RCAN-01The adapter fulfils CiA (CAN in Automation) standardDSP 402 (Device Profile Drives and Motion Control).CANopen device profiles define both direct access tothe drive parameters and time critical process datacommunication.ControlNet: RCNA-01 (+K462)The adapter module supports redundant RG-6 quadshielded cable (coax) for the bus connection. Themodule is also equipped with a NAP (Network AccessPort). RCNA-01 control is based on the standardControlNet objects and vendor specific objects.DeviceNet: RDNA-01 (+K451)Adapter module acts as a Class 2 slave withpredefined master-slave connection set services.These include the Explicit Messaging, the PollResponse service and the Change of State/Cyclicservice. The adapter supports the ODVA AC/DC DriveFunctional Profile with additional features and ABBDrives Profile.EtherCAT: RECA-01The adapter module supports the CANopen DSP 402(Device Profile Drives and Motion Control) profile orthe ABB Drives profile. The RECA-01 implements theEtherCAT state machine, four sync manager channelsto control the access to the application memory, twowatch dogs and specified EtherCAT services,addressing modes and FMMUs.EtherNet/IP: RETA-01 (+K466)The module has two communication profiles; AC/DCdrive profile and ABB Drives profile. The RETA-01 usesstatic assemblies, except for the User Specific Controland the Extended Speed Control Plus DriveParameters assembly. The module
